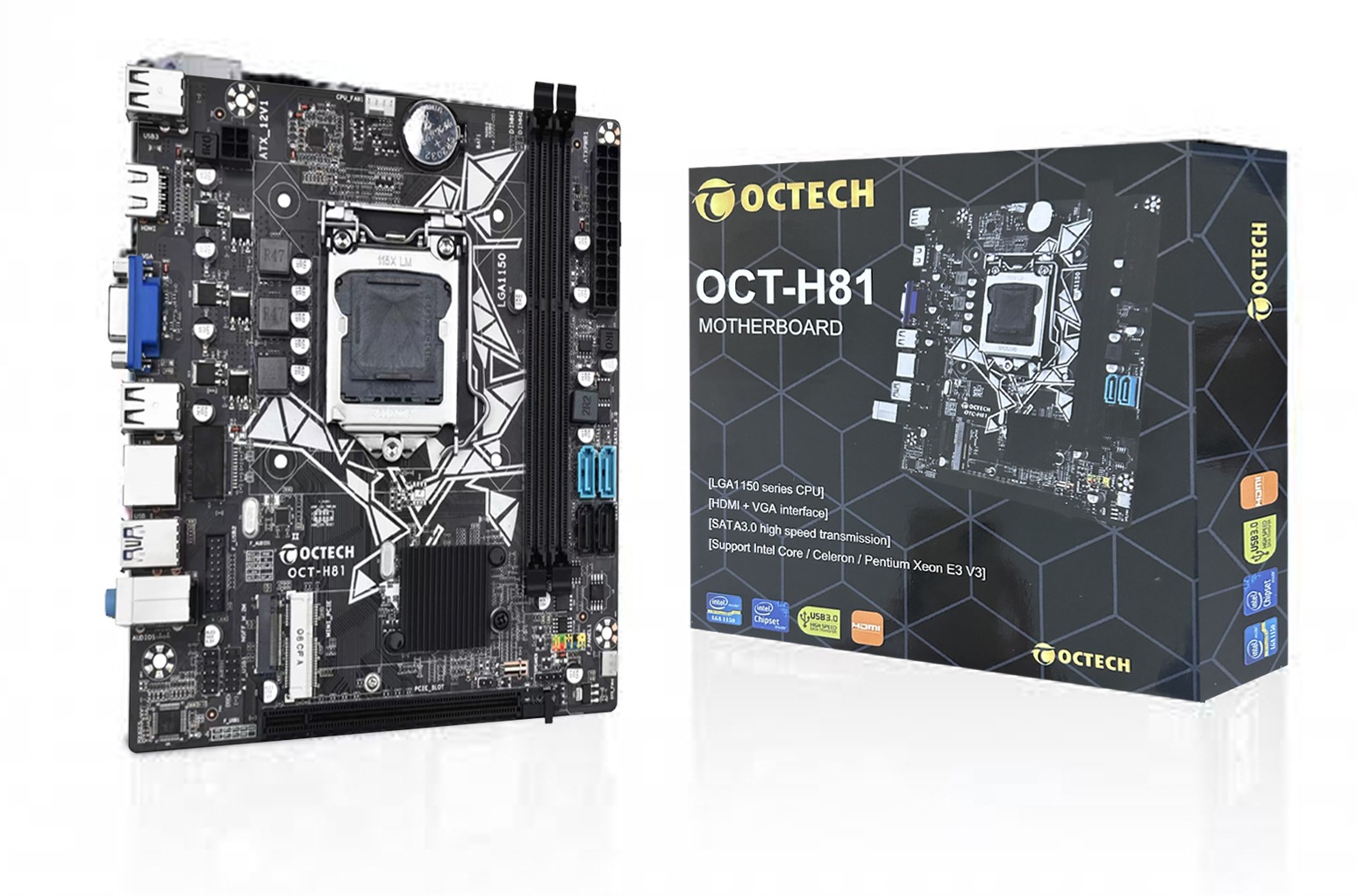

Model H81 OCTECH Motherboard Type Standard Chipset Intel H81 Supported Processors Supports Intel 4th generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Max Memory Up to 16GB Onboard Audio Realtek 662 on board, Supports 6-channel audio-out Onboard LAN Realtek RTL8105/8106 10/100Mbps Ethernet on Board 2 x memory slot Intel Socket 1150 CPU up to 95Watt 4-mounting holes Dual Channel DDR3 1066 / 1333 / 1600 / 1860MHz memory Micro ATX 210 x 170mm form factor Back Panel I/Os 1 x HDMI Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x D-Sub (VGA) Port 1 x RJ-45 LAN Port with LED 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) ON-Board Pinheaders / Connector 1 x USB 2.0 pin-header (supports additional 2 USB 2.0s) 1 x USB 3.0 pin-header (supports additional 2 USB 3.0s) 1 x Front Panel Audio pin-header PCI / PCI-E Slots 1 x PCI Express x16 3.0 slot 1 x PCI Express x1 slot Accessories 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD
