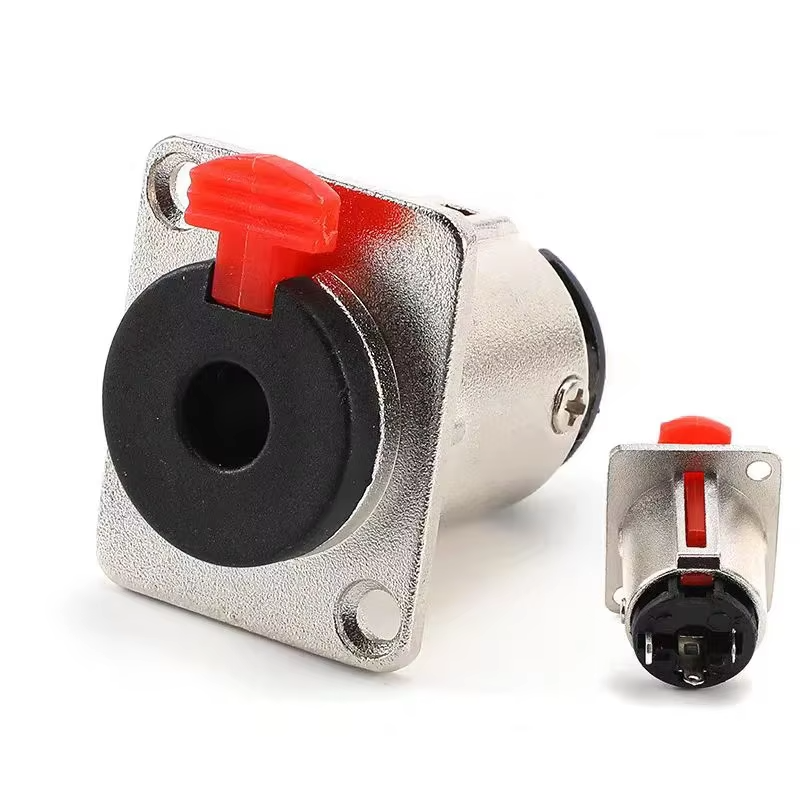

6.35mm (1/4″) Stereo Standard Female Panel Base Socket
$51.53
$97.91
6.35mm (1/4″) Stereo Standard Female Panel Base Socket The 6.35mm (1/4″) Stereo Standard Female Panel Base Socket is a high-quality audio jack designed for professional sound and musical equipment. Widely used in amplifiers, mixers, instruments, and patch panels, this socket ensures stable connectivity for stereo signals. Built with durable materials and precision contacts, it provides low signal loss, excellent reliability, and a long service life. The panel-mount design allows secure installation in enclosures and equipment chassis, making it ideal for both studio and stage applications. Technical Specifications Connector Type: 6.35mm (1/4″) Stereo Female Jack Configuration: TRS (Tip-Ring-Sleeve, Stereo) Mounting Style: Panel Mount (Base Socket) Contact Material: Brass / Phosphor Bronze with Nickel or Gold plating Insulator Material: High-temperature Thermoplastic Shell/Body Material: Metal / Reinforced Plastic (depending on version) Current Rating: 1A – 5A max (depending on model) Voltage Rating: 250V AC max Insulation Resistance: ≥ 100 MΩ @ 500V DC Contact Resistance: ≤ 30 mΩ Dielectric Strength: 1000V AC (1 min) Termination Style: Solder Lug / PCB Mount (depending on model) Mounting Hole Size: ~10mm diameter (standard for 6.35mm jacks) Temperature Range: -20°C to 70°C Durability: > 5000 insertion cycles Standards Compliance: IEC 60603-11
